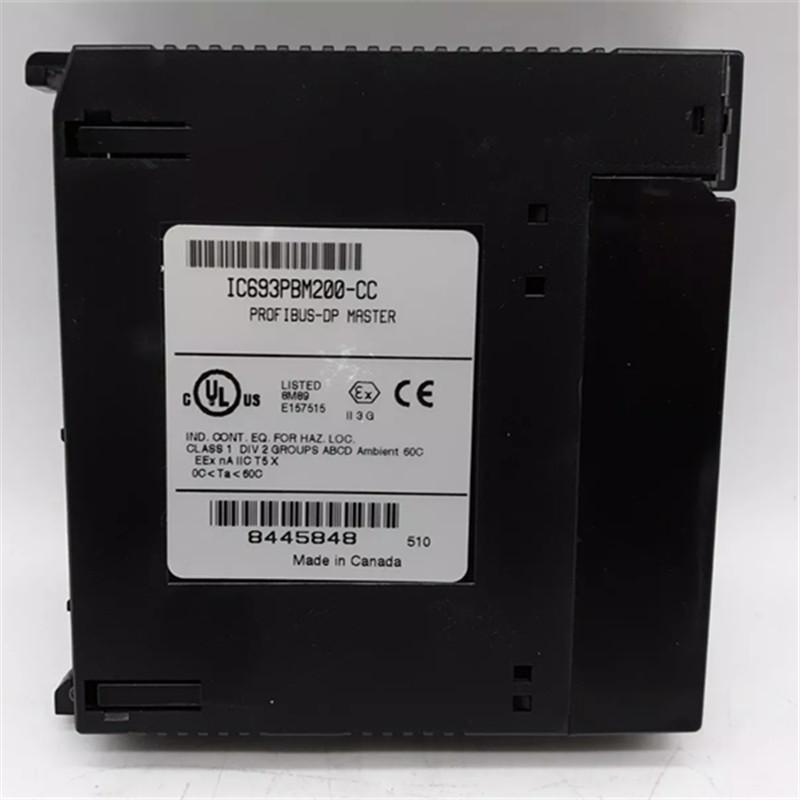

GE Fanuc IC693PBM200 Communication Module

Description:

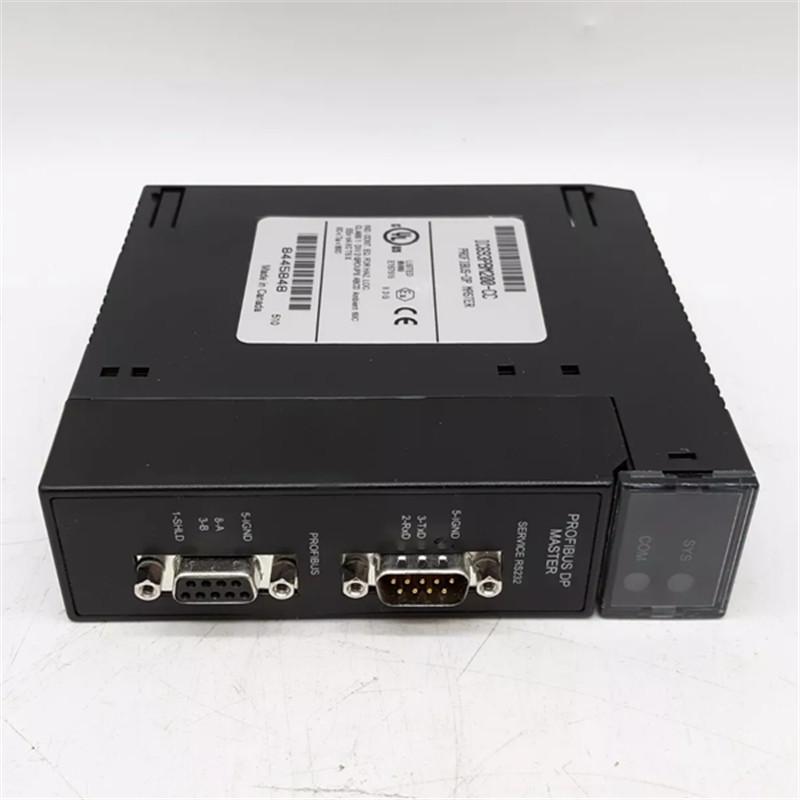

The IC693BPM200 is a Profibus Master Module that is part of the Series 90-30 controller platform previously from GE Fanuc, now acquired by Emerson Automation. This module is an option communications module that support Profibus communication protocol. It comes with One (1) Profibus Master port that supports communication to Profibus network in daisy chain topology and another RS232 service port that can be used for downloading configuration and firmware upgrade. The IC693BPM200 is a single slot module that installs to the CPU baseplate, expansion or remote baseplate. It supports communication of up to 125 Profibus DP slaves, enabling implementation of Remote I/O architecture and communication to other devices such as gateways, HMI, SCADA and other devices. For Remote I/O functionality, each Profibus slave is able to receive 244 Bytes of input data and send 244 Bytes of output data. It supports Synch and Freeze configuration and configurable to all Profibus standard transmission rates ranging from 9600 Kbaud to 12MBaud. It follows Daisy-chain topology as this protocol is derived from RS485 electrical standard with both ends, specifically, node 1 and the last node of the network, closed by means of a terminating resistor. It also comes with SYS and COM status LEDs depicting active communication and device operation. This module is configured using the CIMPLICITY Machine Edition Logic Developer version 2.6 or later. It can be used with Series 90-30 CPUs such as CPU 311/313/323, 331, 341,350, 352,360,363,363 and 364. For most applications and control system, applicable CPU release for this module is V8.00 however, if intended to be used in large scale applications, CPU release 10.60 or later may be needed.

Specification:

Brand:GE Fanuc

Series:Series 90-30

Manufacturer:GE Fanuc

Part Number:IC693PBM200

Product Description:Profibus Master Module

Communication interface:One (1) RS232 Service port; One (1) Profibus Master Port

Communication protocol:ProfiBus

Backplane Current Consumption:450 mA at 5VDC (typical)

No. of supported DP slave:125
